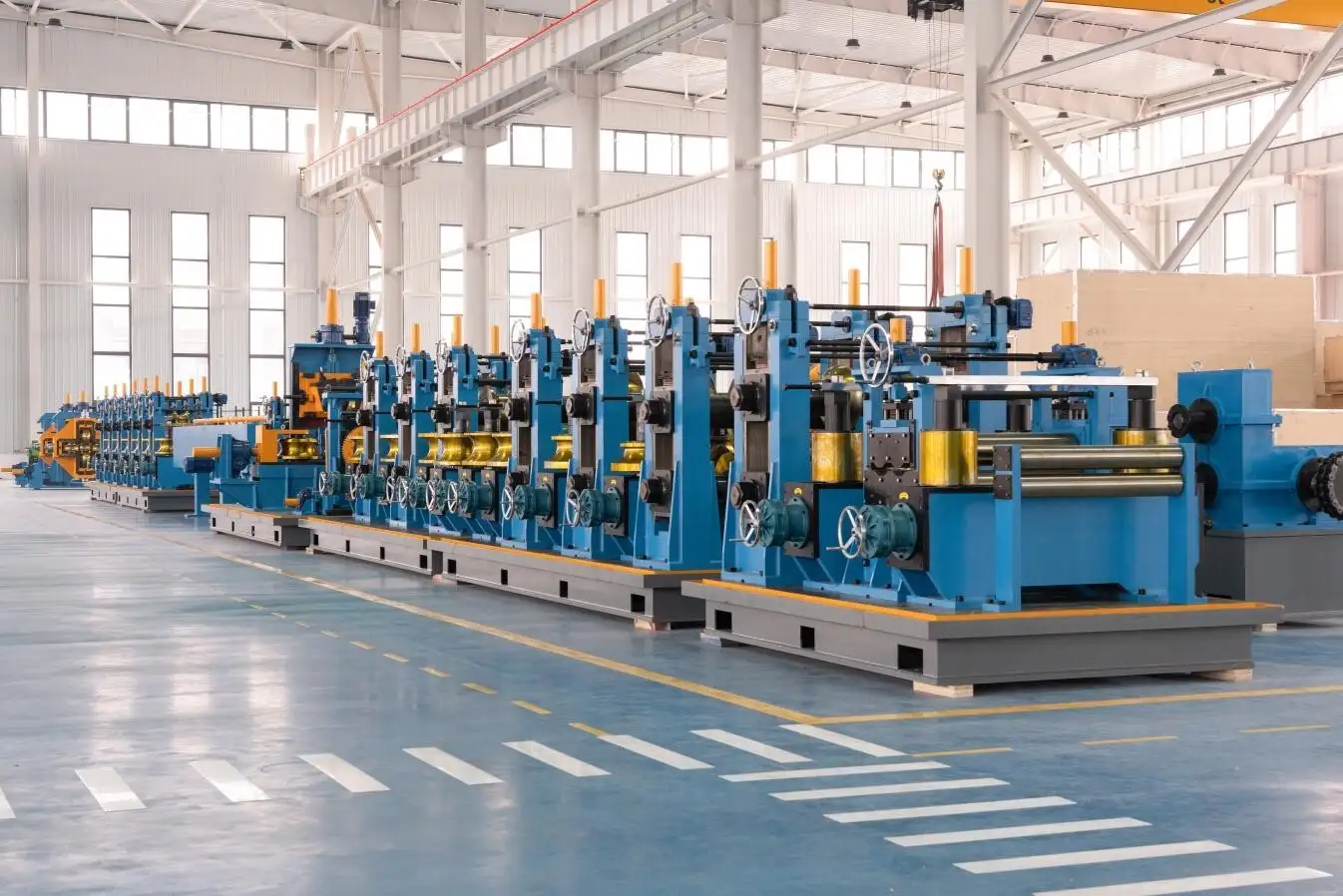

HG325x6.5 Tube Mill Line
Product parameters
|
Round Tube |
Min. Φ168mm, Max. Φ325mm |
|
Round Tube Thickness |
Min.4.0mm, Max. 6.5mm |
|
Square Tube |
Min.130X130mm, Max.250X250mm |
|
Rectangle Tube |
Min.100X160mm, Max.200X300mm |
|
Sq & Rect. Tube Thickness |
Min.4.0mm, Max.6.5mm |
|
Pipe Length |
6.0-12.0m |
|
Length Tolerance |
±2.0mm |
|
Forming mothed |
Round: ”FF” technology |
|
Welding mothed |
Solid State H.F. welding |
|
Line Speed |
Max.40m/min |
Product process drawing
{SteelTape}→→ Hydraulic Double-arbor un-coiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing section →→Milling saw→→Rollout table→→automatic bundling and packing machine
Hydraulic Double-arbor Uncoiler with peeler and coil car
Function :Used for coil loading, uncoiler and coil supporting, providing raw materials for the production line.
Composition: active uncoiling mandrel, pinch roll device, end straightening drive device, shovel head straightening device, hydraulic station, braking system, operation console.
Pinch roll & Leveller
Function: Flattens the head and tail ends of the steel strip, and drives the steel strip to the shear and butt welding machine, facilitating the operation of the shear and butt welding machine.
Composition: Drive Device, Pinch Feed Device, Leveling Device, Photoelectric Detection Element, Electrical & Hydraulic System
Automatic Shear & butt welding machine
Function: cut the irregular sections at the head and tail of the steel strip, aligns the tail end of the previous coil with the head end of the next coil and welds them together, ensuring continuous material supply for the accumulator.
Composition: adopts hydraulic control and is driven by a hydraulic system. The head and tail of the strip are centered, and welding is completed automatically; it includes a centering device, a welding platform, etc
Horizontal spiral accumulator (O.D.: 9.0m)
Function: Stores the steel strip, provides uninterrupted material supply for the main welded pipe machine, and ensures the continuous production of the forming & sizing mill.
Composition: front and rear steering devices, outer cage, inner cage, material storage tray, pinch feeder, pinch feeder drive device, length measuring device, photoelectric detection element, electric control unit, operation console, hydraulic station (included in the hydraulic system of the shear and butt welding machine) etc.
Forming & sizing mill
Solid state High
frequency welder (GGP800KW)
Milling saw
Composition: consists of a basement, saw carriage, rotary headstock, feeding system, sawing system, front and rear clampers, speed measuring system, hydraulic system etc.
Automatic Stacking and Packing machine
Automatic Stacking and Packing machine, need to
feed pipe constant, adopts electromagnetic sucker, motor sensing system control
palletizing number and package shape, and then the package shape with automatic
strapping machine packing then lift to warehourse.
(1) Fast production speed, can be 24 hours of
uninterrupted production.
(2) High degree of automation, improve production
efficiency, and save labor and labor intensity, 2 people can operate the unit,
improve product quality, reduce noise.
(3) Due to the stability and reliability of
automatic production line, the aesthetic rate and qualified rate of various
pipes are improved
(4) In order to meet the needs of customer
various steel pipes, automatic machine flow are as follows: Feeding and pushing
→ steel pipe automatic stacking → lifting arm → horizontal movement → automatic
strapping machine → hoisting
