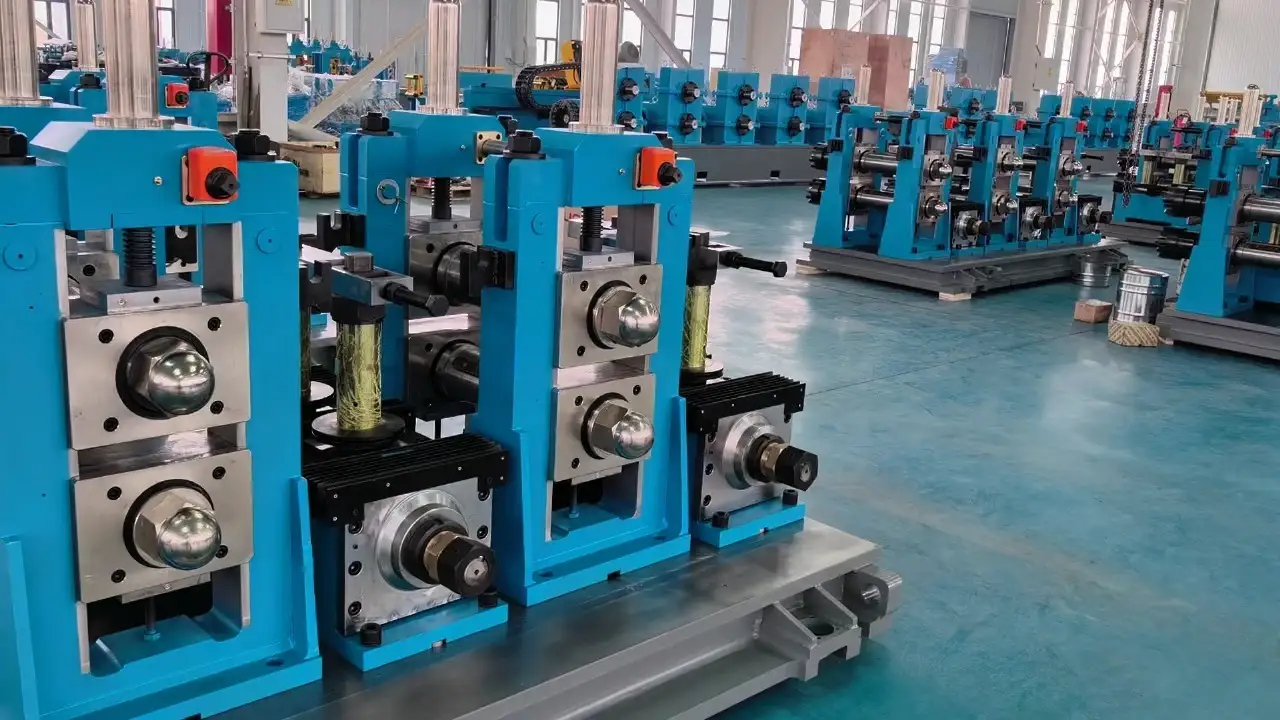

With quick change system High Frequency Welded Pipe Production Line 1

With quick change system High Frequency Welded Pipe Production Line 2

With quick change system High Frequency Welded Pipe Production Line 3

With quick change system High Frequency Welded Pipe Production Line 4

With quick change system High Frequency Welded Pipe Production Line 5

With quick change system High Frequency Welded Pipe Production Line 6

With quick change system High Frequency Welded Pipe Production Line

Name: With quick change system High Frequency Welded Pipe Production Line
Uploaded: 2026-04-10T10:31:22+08:00
Description: ERW127 Tube Mill with quick change roller system, Automatic stacking & packing machine

ERW127 Tube Mill with quick change roller system, Automatic stacking & packing machine

Technology:

Material:

Low carbon steel & Low alloy steel

Brand:

TENENG

Packaging:

Mechanical for plastic clothes, electrical for wooden boxes

Machine color:

Blue or green

Payment Methods:

T/T, LC, DP

Shipping Port:

Tianjin Port, China

Terms:

EXW, FOB, CIF

Inquiry

Write a Review

Production Process

Continuous automatic production, one-step solution

{SteelTape}→→ Single-arbor un-coiler →→pinch & leveller→→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing unit and straightener →→Cold saw→→Rollout conveyor→→Automatic stacking & packing machine

Technical Parameters

Standard Specifications (Customizable)

Products:

Carbon steel tube as per customer’s request:

Round Tube	: Min. Φ60mm, Max. Φ127mm
Round Tube Thickness	: Min.1.5mm, Max.6.0mm
Square Tube	: Min.50X50mm, Max.100X100mm
Rectangle Tube	: Min.40X60mm, Max.50X150mm
Sq & Rect. Tube Thickness	: Min.1.5mm, Max.5.0mm
Pipe Length	: 6.0-9.0m
Length Tolerance	:±2.0mm

5. Line Speed : 20-60m/min

6. Power Source

Dynamic power	: AC440V, 3phases, 60Hz
Control Power	: AC24

7. Cooling water

Reservoir for High Frequency equipment	: 30m³, 1 set
Reservoir for circulating cooling water	: 20m³, 1 set

8. Compressed air

Pressure	: 0.8Mpa
Flow	: 4.0m³/h

FAQ

Answers to Your Questions

Is it easy to operate? Need professional staff?

PLC intelligent control system, simple interface. We provide free training, easy to operate without professional staff.
Can speed be adjusted?

Yes, with frequency conversion system, speed can be adjusted freely according to tube size, thickness and process.
Do you provide installation and training?

Yes, we provide worldwide on-site installation, commissioning and operation training.
