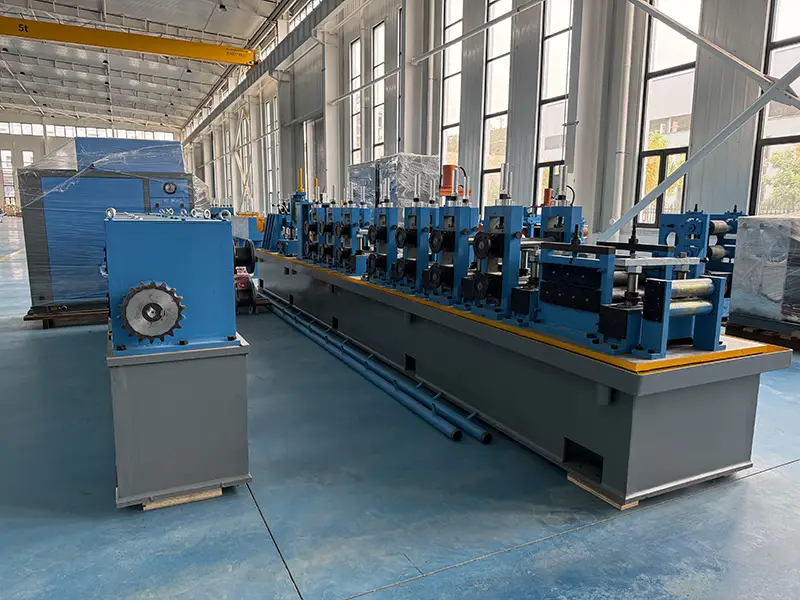

HG50 Welded Tube Mill in high speed automatic
Product parameters
| Round Tube | Min. Φ12mm, Max. Φ50mm |
| Round Tube Thickness | Min.0.8mm, Max. 3.0mm |
| Square Tube | Min.10X10mm, Max.40X40mm |
| Rectangle Tube | Min.10X15mm, Max.30X50mm |
| Sq & Rect. Tube Thickness | Min.0.8mm, Max.2.0mm |
| Pipe Length | 6.0m |
| Length Tolerance | ±2.0mm |
| Forming mothed | Roundtraditional forming technology Square and rectangleround to square |
| Welding mothed | Solid State H.F. welding |
| Production Speed | Max.120m/min |
| Feeding direction | Right or left side feeding |
Product process drawing
Product Description
The HG50 is a high-precision Electric Resistance Welding (ERW) pipe manufacturing equipment, engineered to deliver superior quality tubular products for diverse industrial sectors. Integrating advanced high-frequency welding technology, precision mechanical components, and intelligent control systems, this equipment sets a new standard for accuracy, efficiency, and reliability in small to medium-sized welded pipe production. Designed for versatility, it efficiently manufactures round, square, rectangular, and even special-shaped pipes, meeting the stringent quality requirements of modern manufacturing.
Our advantage
Uncoiler
It is the double-head gyration type, the expanding and shrinking of the reel lead screw, the centre of the reel plate and the center line of the uncoiler through adjustable framework can be flexibly aligned, one cone-head work, and another feeding, can reduce the feeding time in maximum extent.
Forming section
The forming section serves as the core functional unit of the welded pipe mill, responsible for transforming flat steel coils into open seam pipe blanks with a specific cross-sectional shape through a continuous and progressive bending process.
Arrangement: Feeding five-roll flattener, seven horizontal roll stands, and eight vertical roll stands.
Welding section
The welding section is the key unit that converts open pipe blanks from the forming section into closed seamless welded pipes, and its performance directly determines the welding strength, airtightness and surface quality of the finished pipes.
Arrangement: Guide roll stand, Squeeze roll stand, remove burr device, Polishing roll stand, and water cooling tank etc.
Sizing section
The sizing section is the final precision unit in the welded pipe production line, tasked with calibrating the welded pipe blanks (after welding and weld scar removal) to meet the required dimensional accuracy, roundness and straightness. It plays a critical role in ensuring the consistency of finished pipe specifications, which is essential for subsequent applications such as pipe connection and assembly.
What is the delivery time for this machine?
It is need about 3months.
What is the warranty time?
2years, expert the spare parts and man-made damage.
