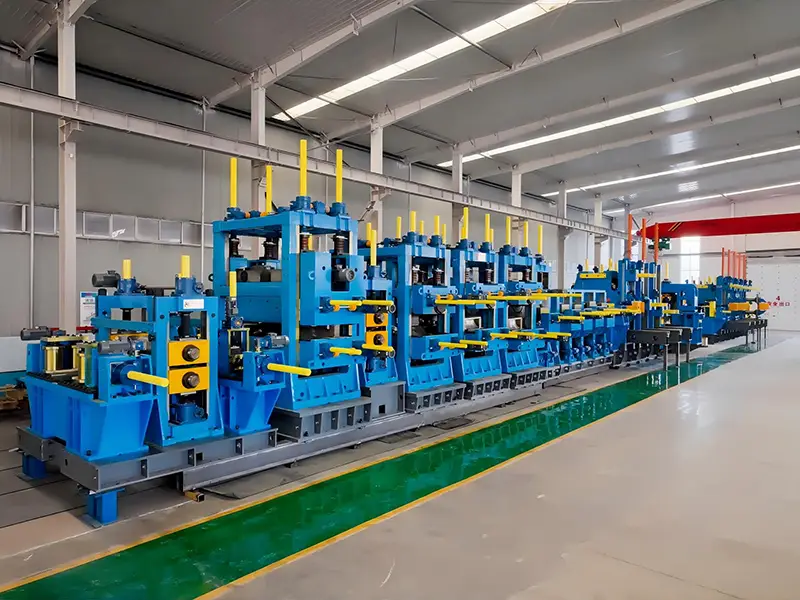

HG426 High Frequency Pipe Mill Line
The 426 high-frequency straight seam welded pipe production line is used to produce straight seam welded pipes with an outer diameter of Φ325-426mm. It adopts the continuous roll forming + high-frequency welding process, featuring a high degree of automation, stable operation, and high efficiency. The entire production line includes uncoiling, leveling, shearing and butt welding, looper, forming, high-frequency welding, sizing, cooling, flying saw cutting, and discharge table, and can operate continuously for 24 hours.
5.0
Technology:
Traditional forming technology; Square and rectangle: round to square
Material:
Low carbon steel & Low alloy steel
Brand:
TENENG
Packaging:
Mechanical for plastic clothes, electrical for wooden boxes
Machine color:
Blue or green
Payment Methods:
T/T, LC, DP
Shipping Port:
Tianjin Port, China
Terms:
EXW, FOB, CIF
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product parameters
| Item | Value |
| Model | HG426 |
| Round Tube | Φ325 – Φ426 mm |
| Sq & Rect. Tube | 80×80 - 400×400mm |
| Thickness | 3.0 – 12.0 mm |
| Material | Low carbon steel & Low alloy steel |
| Forming mothed | Round:Traditional forming technology Square and rectangleround to square |
| Welding mothed | Solid State H.F. welding |
| Production Speed | 10 – 30 m/min |
| Feeding direction | Right or left side feeding |
Production Flow
Equipment Advantages
- Continuous forming, high precision
- High-efficiency HF welding, smooth weld
- Full PLC control, easy operation, low failure rate
Application Fields
Customization
- Customized line based on workshop, output, material
- Old line upgrading & reconstruction
- Auto loading, packing, stacking system available
After-Sales Service
- 1-year free warranty
- Free installation, commissioning, training
- Remote diagnosis & technical support
