With 16+ years of experience, focus on steel pipe production equipment.

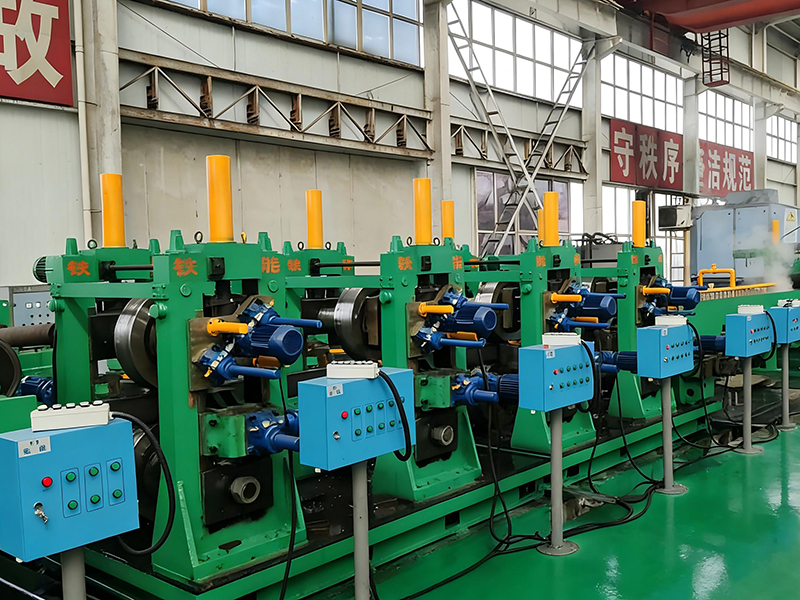

HG273 ERW Tube Mill Machine

We focus on design, production and sales of high-frequency pipe welding machines.Our HG273 high-frequency pipe production line adopts advanced solid-state high-frequency welding technology, widely used in construction, furniture, automobile, machinery and pipeline industries.National High-tech Enterprise.

Technology:

Traditional forming technology; Square and rectangle: round to square

Material:

Low carbon steel & Low alloy steel

Brand:

TENENG

Packaging:

Mechanical for plastic clothes, electrical for wooden boxes

Machine color:

Blue or green

Payment Methods:

T/T, LC, DP

Shipping Port:

Tianjin Port, China

Terms:

EXW, FOB, CIF

Inquiry

Write a Review

Product parameters

Round Tube	Min. Φ102mm, Max. Φ273mm
Sq & Rect. Tube	Min.80X80mm, Max.200X200mm
Thickness	Min.3.0mm, Max.10.0mm
Producing Speed	20–40m/min
Material	Low carbon steel & Low alloy steel
Forming mothed	Round: traditional forming technology Square and rectangle: round to square
Welding mothed	Solid State H.F. welding
Feeding direction	Right or left side feeding

Export Case

The HG273 high-frequency welded pipe mill has been successfully exported to Egypt and Ukraine. It is mainly used in the production of construction pipes, industrial pipes, and general-purpose round/square pipes. Mass delivery and stable operation have been achieved, and it has received repeat orders and recommendations from customers. This project has fully verified the equipment's dual adaptability to high-temperature harsh environments and the high-standard European market, demonstrating the enterprise's mature technology, stable quality, high efficiency, energy saving, high cost performance, as well as global delivery and after-sales service capabilities.

Why Choose Our Equipment?

1.High Precision & High Stability

Adopting brand parts, CNC machining and robust structure to ensure high precision and long service life.

2.High Efficiency & Energy Saving

High-frequency welding technology improves efficiency by 30% and saves energy by 20%, greatly reducing production costs.

3.Customized Solutions Supported

Providing exclusive customized equipment according to pipe diameter, material, output and workshop layout.

4.After-sales service

On-site installation, debugging, and training.

5.Certified Quality · Factory Direct Price

ISO certified, strict quality inspection, factory direct sales, high cost-performance and high return on investment.
