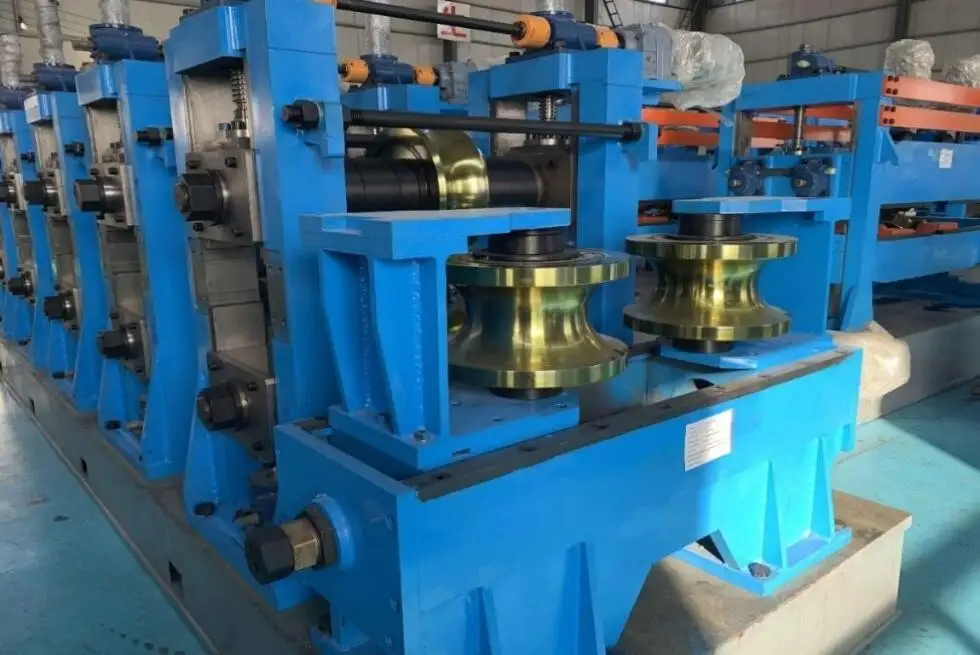

ERW273x8 Tube Mill

The mill is intended for manufacturing of round pipe of Φ88.9mm-Φ273mm with thickness of 3.0mm–8.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

Technology:

Round: “FF” technology; Square and rectangle: round to square

Material:

Carbon steel

Brand:

Teneng

Packaging:

Mechanical equipment is wrapped in plastic, while electrical components are packed in wooden boxes.

Machine color:

customer-specified

Payment Methods:

TT/ LC

Shipping Port:

Xingang Port China

Terms:

EXW / FOB / CFR / CIF

Inquiry

Write a Review

technical flow

{SteelTape}→→ Hydraulic Double-arbor uncoiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit→→ Sizing section →→Milling saw→→Rollout conveyor

Product parameters

Round Tube	Min. Φ89mm, Max. Φ273mm
Round Tube Thickness	Min.3.0mm, Max.8.0mm
Square Tube	Min.70X70mm, Max.200X200mm
Rectangle Tube	Min.60X80mm, Max.150X250mm
Sq & Rect. Tube Thickness	Min.3.0mm, Max.8.0mm
Pipe Length	6.0-12.0m
Length Tolerance	±2.0mm
Forming mothed	Round: ”FF” technology Square and rectangle: round to square
Welding mothed	Solid State H.F. welding
Line Speed	0-40m/min

Line Composition

Hydraulic Double-arbor Uncoiler With peeler and coil car	: 1 set
Pinch roll & Leveller	: 1 set
Automatic Shear & butt welding machine	: 1 set
Spiral Accumulator	: 1 set
Forming section	: 1 set
Welding section	: 1 set
Solid state High frequency welder (GGP800KW)	: 1 set
D.C.driver	: 3 sets
Sizing section	: 1 set
Milling saw	: 1 set
Rollout conveyor	: 1 set
Automatic packing machine	: 1 set
