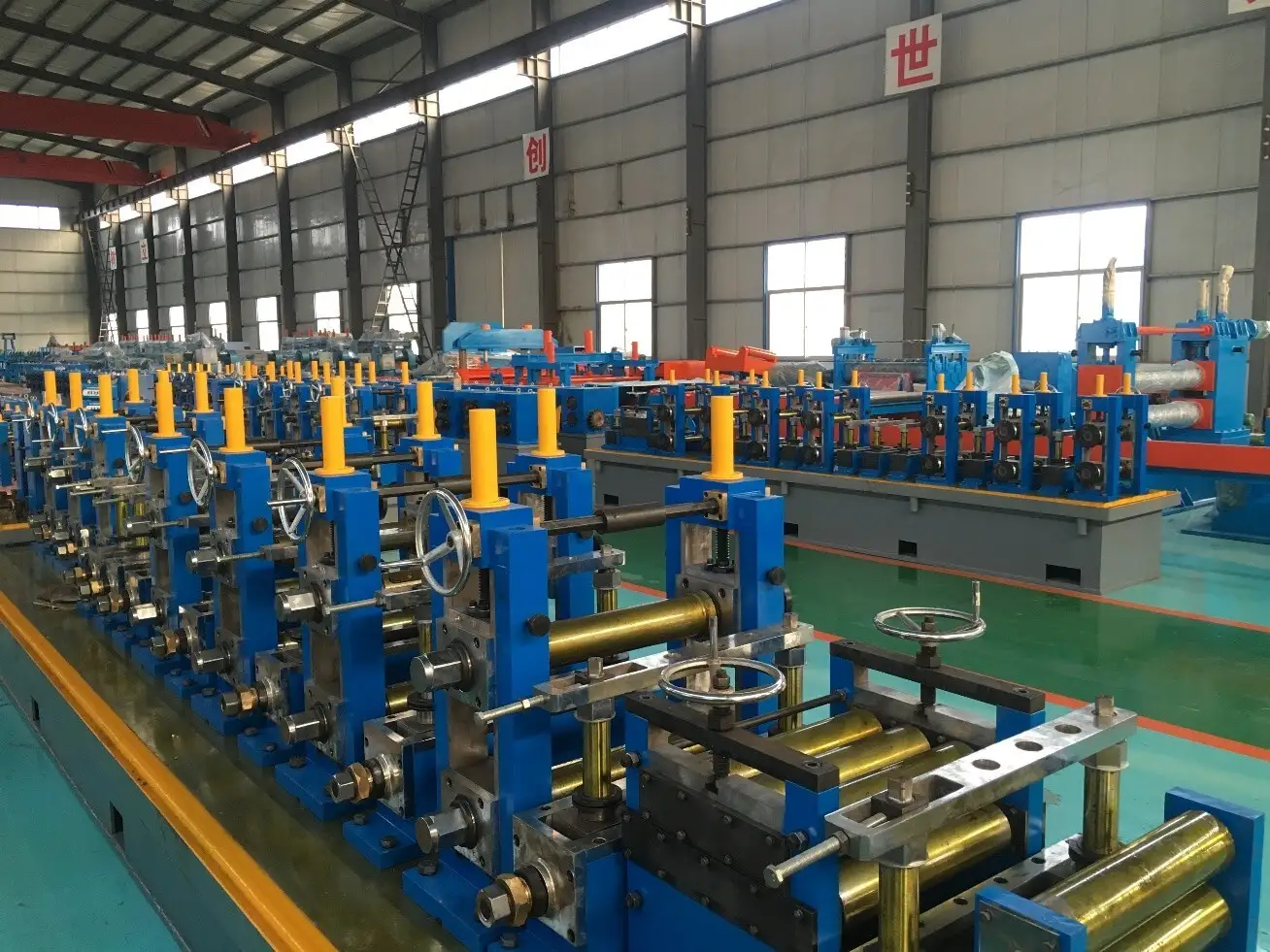

HG50x2 Tube Mill Line

The mill is intended for manufacturing of round pipe of Φ16mm-Φ50mm with thickness of 1mm–2mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.

Technology:

Round to Square

Material:

Carbon steel

Brand:

Teneng

Packaging:

Mechanical equipment is wrapped in plastic, while electrical components are packed in wooden boxes.

Machine color:

customer-specified

Payment Methods:

TT/ LC

Shipping Port:

XinGang Port China

Terms:

EXW / FOB / CNF / CIF

Inquiry

Write a Review

Product parameters

Round Tube	Ø16–Ø50mm
Round Tube Thickness	1– 2mm
Square Tube	20X20mm –40X40mm
Rectangle Tube	10X30mm –30X50mm
Sq & Rect. Tube Thickness	1– 2mm
Pipe Length	6.0-8.0m
Length Tolerance	±2.0mm
Forming mothed	Round: ”FF” technology Square and rectangle: round to square
Welding mothed	Solid State H.F. welding
Feeding direction	Right or left side feeding

Product process drawing

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→ Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + Removing External burr →→Cooling unit →→ Sizing unit and Turkshead →→Cold Saw →→ Run-out table

Hydraulic Double-head un-coiler

Briefing: Rotary type to change coils easily, with a pneumatic brake

Hydraulic Shear & butt welding machine

Cutting by hydraulic

welding by manual

Horizontal spiral accumulator (O.D.: 3.5m)

Forming & sizing section：

Forming mill gearbox, universal joint

Sizing mill gear box, universal joint

Solid state High frequency welder(GGP200KW)

Nominal power: 200kW

Forming section

Raw Material	: Low carbon steel, Max.Q235,
Round Tube	: Min. Φ16mm, Max. Φ50mm
Round Tube Thickness	: Min.1.0mm, Max. 2.0mm
Square Tube	: Min.20X20mm, Max.40X40mm
Rectangle Tube	: Min.10X30mm, Max.30X50mm
Sq & Rect. Tube Thickness	: Min.0.8mm, Max.1.5mm
Pipe Length	: 6.0m
Length Tolerance	:±2.0mm
Cutting burr height	: Max.0.2mm
Saw Speed	Max.120m/min

Run-out table

- Roller conveyer 15 meter;

- Reversed pneumatically;

- Pushed pneumatically;
