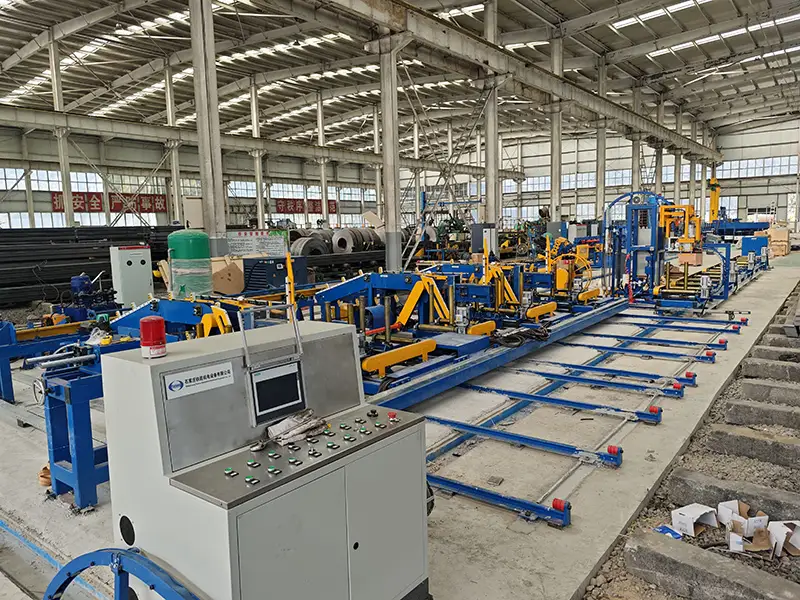

TNDB76 Automatic packing machine for round square & rectangle pipe
Product parameters
| Item | Parameter |
| Bundle Shape | Hexagonal Bundle, Square and Rectangular Bundle |
| Round Pipe | φ20mm-φ76mm |
| Square and Rectangular | 20*20-60*60mm 10*30-40*80mm |
| Line Speed | ≤80m/min |
| Pipe Length | 6.0m |
| Max square bundle size | 500*500mm |
| Min square bundle size | 350*350mm |
| hexagonal bundle middle layer | 360mm-560mm |
Product process drawing
Pipe Feeding →Pipe Layering →Automatic Stacking Mechanism →Pipe End Alignment →Bundle Vertical Delivery →Manual Strapping →Conveyor
Product Description
Automatic steel pipe stacking machine is used on the end of the steel pipe production line, to complete the collection and stacking the welded pipes automatically. The machine can run stable automatically, reducing the labor intensity, improving the automation level of the production line and effectively improving the production efficiency. The Machine can eliminate the impact and knocking noise of pipes, avoid scratches and bruises, improve product quality, reduce production costs, and eliminate the potential safety hazards.
Our advantage
Automatic Stacking device
According to the parameters set by the program, the steel pipe are stacked and formed.The frame uses high strength steel pipe, the material frame lifting and the fork arm telescopic guide device are all using the special C-type steel for forklift. Forklift special C-type steel has the characteristics of strong strength, not easy to deformation and durability.
Automatic packing device
Automatic Strapping machine without buckles bite.
What is the delivery time for this machine?
It is need about 4months.
What is the warranty time?
2years, expert the spare parts and man-made damage.
