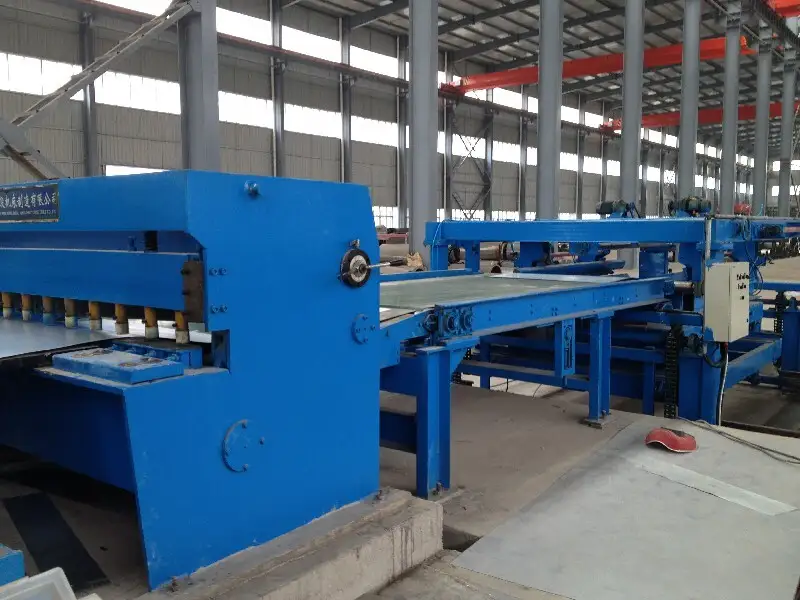

HJ1650X6.0 automatic Cut-to-length machine1
Product parameters
| Name | Parameter | Name | Parameter |
| Control model | PLC DC control | Coil weight | ≤30Ton |
| Applied to | Carbon steel(St37) | Speed | ≤25 m/min |
| Tensile strength and Yield strength | δb≤450Mpa,δS≤260Mpa | Material of cutter blade | H13K |
| Thickness | 1-6mm | Harness | HRC56°-60° |
| Width | 500-1650mm | Size of the whole line | 22m(L)X8m(W) |
| ID | Φ508/610/760mm | Color | Green |
| OD | ≤Φ2000mm |
Product process drawing
Uncoiler
The Uncoiler on the feeding machine is compacted by the presser arm, after cutting the strap, the winder head is extended forward by the rotation of the electric presser winder. Extend hydraulic shovel head forward, balance oil cylinder to adjust the height of shovel head, connect plate, hydraulic straight head mechanism straight head down, press straight plate head for several times, make the roll head smoothly into hydraulic clamping mechanism, adjust the initial straightening roller, clip the plate after the initial straightening and send it to the transition table.
Cutter
Cutting model: cut from down to up mechanically which is cooperate with the signal direct from the encoder and shear automatically
Automatic control the shearing
Adopt gap adjusting design to cut the materials
Four-side cutter , the material is H13K,and it can shear 6mm steel plate safely after heat treatment
Stacker
Frame welded from steel plates. Automatic pneumatic stopper system, etc.
Baffle frame has a screw to adjust the left and right access, can be adjusted according to different plate width to the required baffle blanking width, blanking frame behind the moving plate frame, the cut plate through the plate cylinder to push the material neatly, push plate frame has the motor to move in and out.
Why choose us?
What is the delivery time for this machine?
It is need about 3months.
What is the warranty time?
2years, expert the spare parts and man-made damage.
