With 16+ years of experience, focus on steel pipe production equipment.

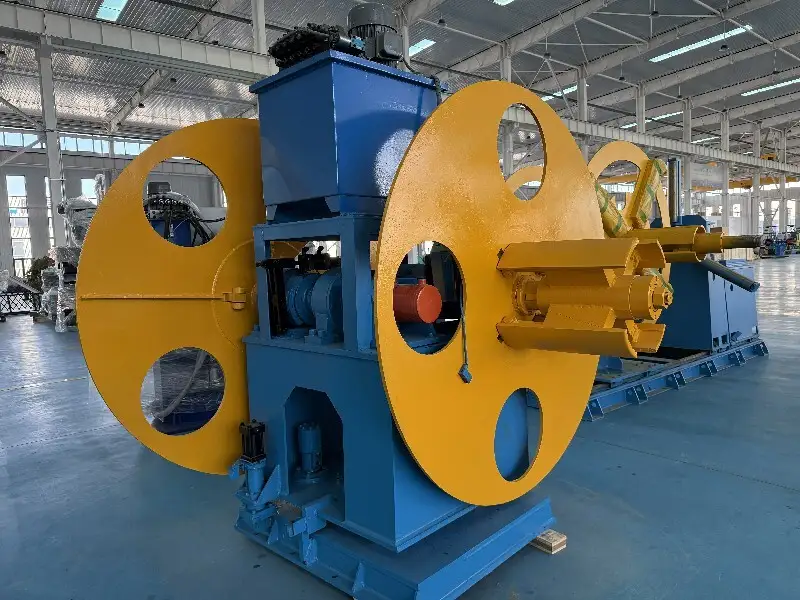

HJ1650X6.0 automatic Cut-to-length machine 1

HJ1650X6.0 automatic Cut-to-length machine 2

HJ1650X6.0 automatic Cut-to-length machine 3

HJ1650X6.0 automatic Cut-to-length machine 4

HJ1650X6.0 automatic Cut-to-length machine

Name: HJ1650X6.0 automatic Cut-to-length machine
Uploaded: 2026-01-09T16:23:00+08:00
Description: The slitting line is used for longitudinally slitting wide steel plates from steel coils.

The slitting line is used for longitudinally slitting wide steel plates from steel coils.

Technology:

Tensile shear,synchronous shear

Material:

Low carbon steel & Low alloy steel

Brand:

TENENG

Packaging:

Mechanical for plastic clothes, electrical for wooden boxes

Machine color:

Blue or green

Payment Methods:

T/T, LC, DP

Shipping Port:

Tianjin Port, China

Terms:

EXW, FOB, CIF

Inquiry

Write a Review

Product parameters

Name	Parameter	Name	Parameter
Control model	PLC DC control	Coil weight	≤30Ton
Applied to	Carbon steel(St37)	Speed	≤25 m/min
Tensile strength and Yield strength	δb≤450Mpa,δS≤260Mpa	Material of cutter blade	H13K
Thickness	1-6mm	Harness	HRC56°-60°
Width	500-1650mm	Size of the whole line	22m(L)X8m(W)
ID	Φ508/610/760mm	Color	Green
OD	≤Φ2000mm

Product Introduction

The slitting line is used for longitudinally slitting wide steel plates from steel coils. The entire line is controlled by PLC (Programmable Logic Controller). Hydraulic loading is interlocked with the operation of directional valves to ensure that the hydraulic station remains in an unloaded state when no hydraulic cylinders (motors) are in operation. For ease of operation, two operating platforms and one operating box are installed throughout the line. The line adopts a passive shear (pull shear) working method. The line mainly consists of three parts: mechanical, electrical control, and hydraulic.

Why choose us?

Features: high slitting precision, stable operation, and strong material adaptability.

Advantages: high production efficiency, uniform strip width, automated control, and low material waste.

Key parameters: coil width/thickness range, slitting speed, number of slitting blades, and strip width tolerance.

What is the delivery time for this machine?

It is need about 3months.

What is the warranty time?

2years, expert the spare parts and man-made damage.
