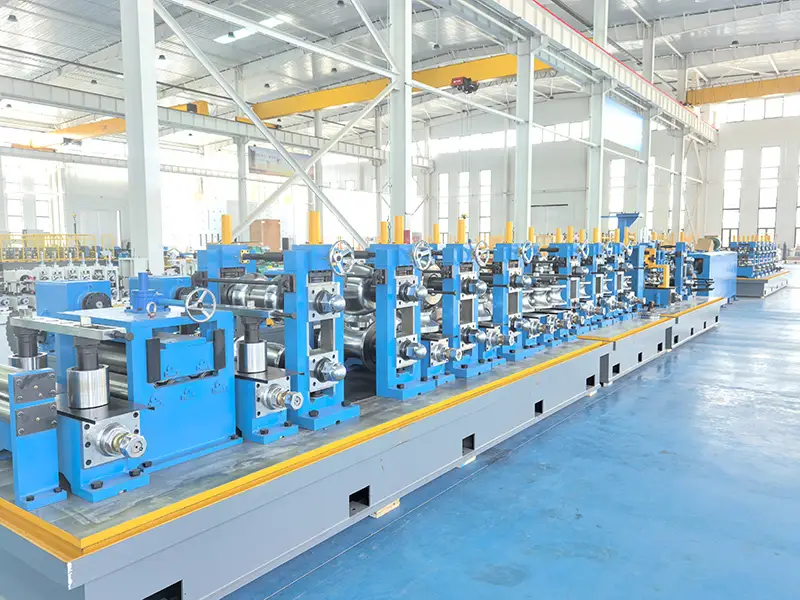

HG325 Oil & Gas Pipe Production Line
HG325 ERW (High-Frequency Straight Seam Electric Resistance Welding) Natural Gas and Oil Pipeline Production Line is a professional pipe-making equipment with high automation and high reliability, specially designed for the oil and gas transportation field. It can stably produce medium-caliber straight seam welded pipes that meet API and other oil and gas pipeline standards, and is widely used in scenarios such as oil and gas gathering and transportation, urban gas pipe networks, and chemical fluid transportation.
5.0
Technology:
"FF" forming technology
Material:
Q235, Q345, X42, X56, X70, X80
Brand:
TENENG
Packaging:
Mechanical for plastic clothes, electrical for wooden boxes
Machine color:
Blue or green
Payment Methods:
T/T, LC, DP
Shipping Port:
Tianjin Port, China
Terms:
EXW, FOB, CIF
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product parameters
| Parameter Category | Specification |
| Finished Pipe Size | Round: φ127–325mm; Square/Rectangular: 100×100–250×250mm |
| Wall Thickness | 4.0–12.7mm |
| Production Speed | 15–40m/min |
| HF Welding Powe | 1000kW Solid-State HF Power |
| Forming mothed | Round: “FF” technology Square and rectangle: round to square |
| Welding mothed | Solid State H.F. welding |
| Feeding direction | Right or left side feeding |
| Product Standard | API-5L、API-5CT、ASTM 53、Grade A&B |
Our advantage
-
Multi-Purpose & Flexible Production
Compatible with round and square/rectangular pipe production in one line, no extra equipment needed, significantly reduce investment cost.
- High-Quality Weld for Pressure Service
HF welding + MF annealing dual process, meet API 5L X70 standard, suitable for oil & gas long-distance pipelines and high-pressure gas networks.
-
High Efficiency
Production speed 10-35m/min, short investment return cycle with high cost performance.
