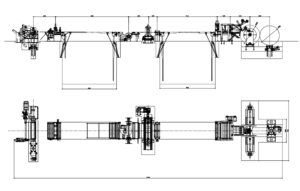

The technical flow of the Slitting line:

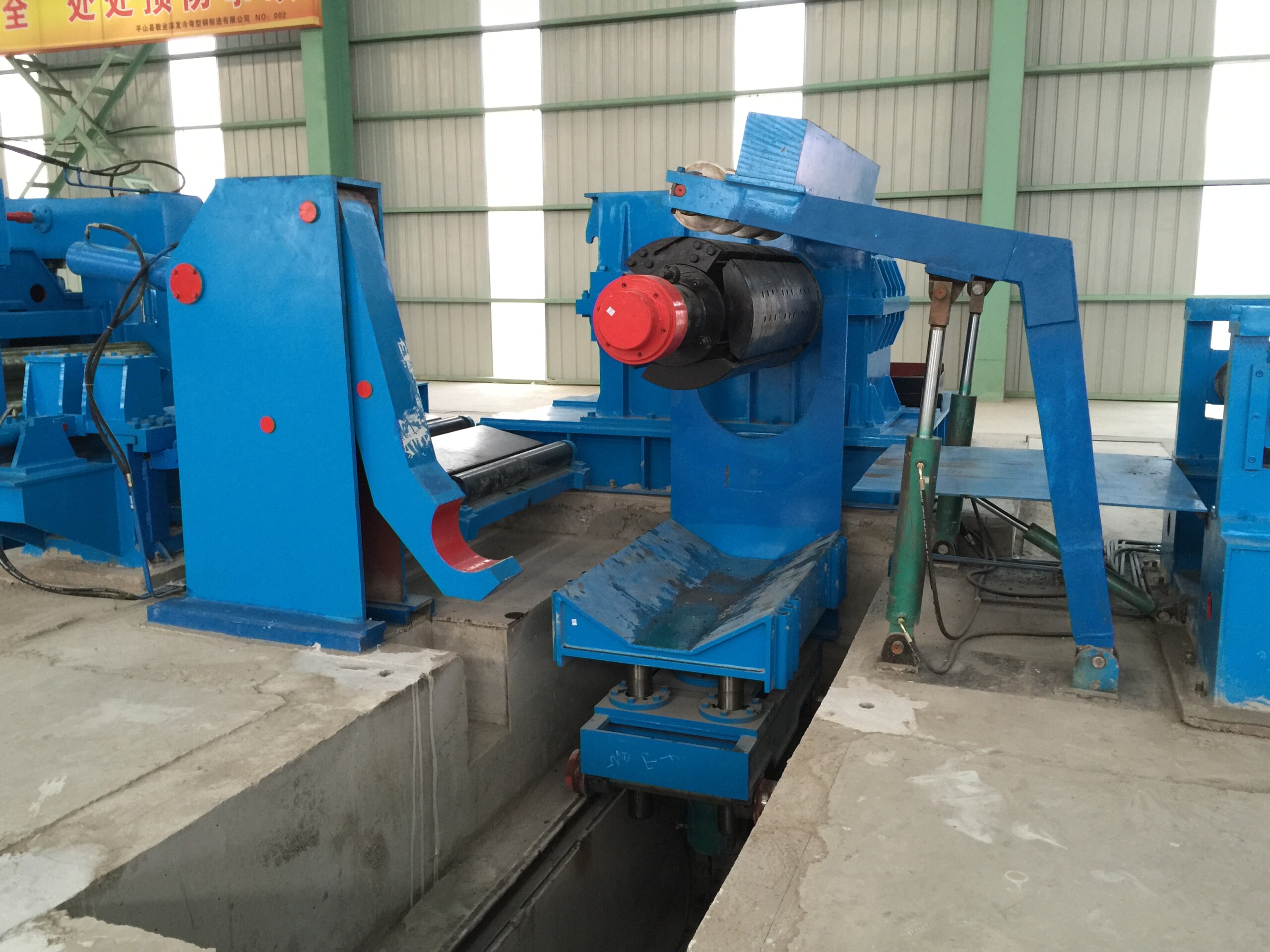

Coil car and storage→ Uncoiler→Shovel board device → Flattening → Shear the ends →Centering device→Disc shear Slitter→Rewinder → Platform →Locating expanding set→Recoiler→Active support,hold down arm and table→Discharge coil car
| Raw Material Feeding | CR Coil, Galvanized steel, HR coil |
| Material Tensile Strength | Max 550MPa |
| Material Yield Strength | Max 235MPa |
| Coil OD | 1100mm to 2000mm |
| Coil ID | 508mm&610mm (customer order) |
| Coil Weight | Max 25000 kg |
| Coil Width | Min 500mm, Max 1250mm |
| Coil Thickness | Min1.0mm, Max6.0 mm |
| Width Tolerance | ≤0.10mm |
| Burr Tolerance | ≤3% thickness |
| Slitting running speed | Once 1.0-2.0mm, 0-80m/min Once over 2.0mm, 0-60m/min |
| Slitting quantity | 3mm thickness ≤6 piece 2mm thickness ≤15 piece |
| Input Power | 380V,50Hz, 3 Phrase |
| Electric installed capacity | 300KW |
| Floor size | 28×9.5m (length X width) |
| Direction of Operation | To be confirmed by buyer |
| Slit blade Shaft diameter | 260mm |
| Shaft Material | 40Cr forge, tempering, mid frequency headening |
| Blade Material | H13 |
| Blade Hardness | HRC56-58 |
