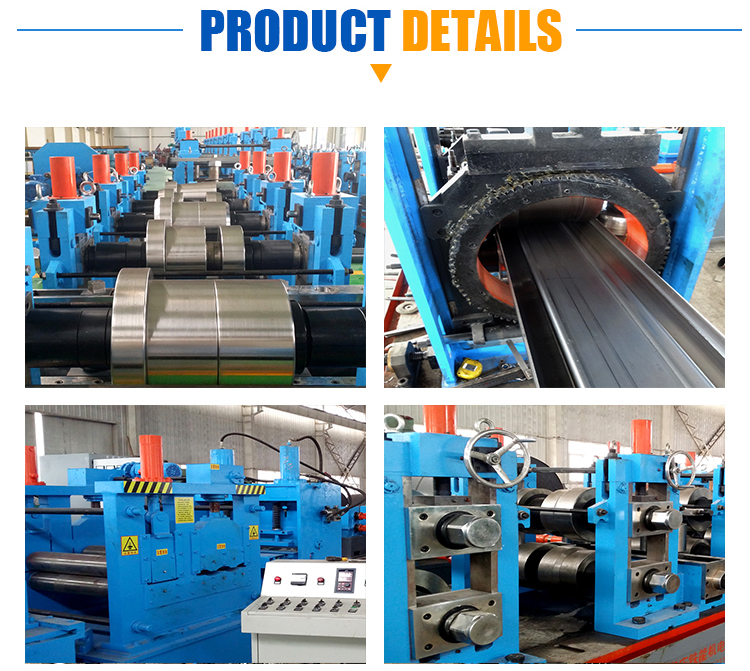

Factory made Trade assurance CE ISO cold roll forming mill Machine
The mill is intended for manufacturing of “ U” profile pipe with thickness of 3.0mm–4.0mm from low carbon steel strip.
Finished product will be of round pipe, square and rectangle pipe.
The technical flow of the production line:
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Forming section →→Pinch cutting saw →→ Run-out table →→ Packing
| Strip Steel Coil | |
| Material | Low Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ470-510mm |
| Outer diameter | Φmax=1800mm |
| Strip steel width | 140mm-280mm |
| Strip steel thickness | 3.0mm-4.0mm |
| The maximum weight | 5.0 tons |
| Electric installed capacity | appro. 100KW |
| Size of the whole line | appro. 40X6.0m |
| Line Speed | 10-40m/min |
