The mill is intended for manufacturing of round pipe of Φ25mm-Φ76mm with thickness of 1.2mm–4.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round pipe, square and rectangle pipe.

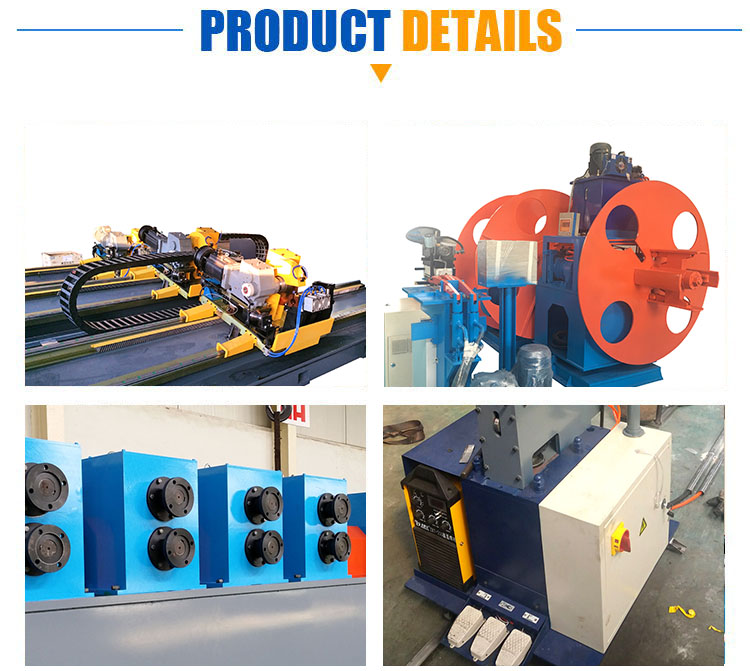

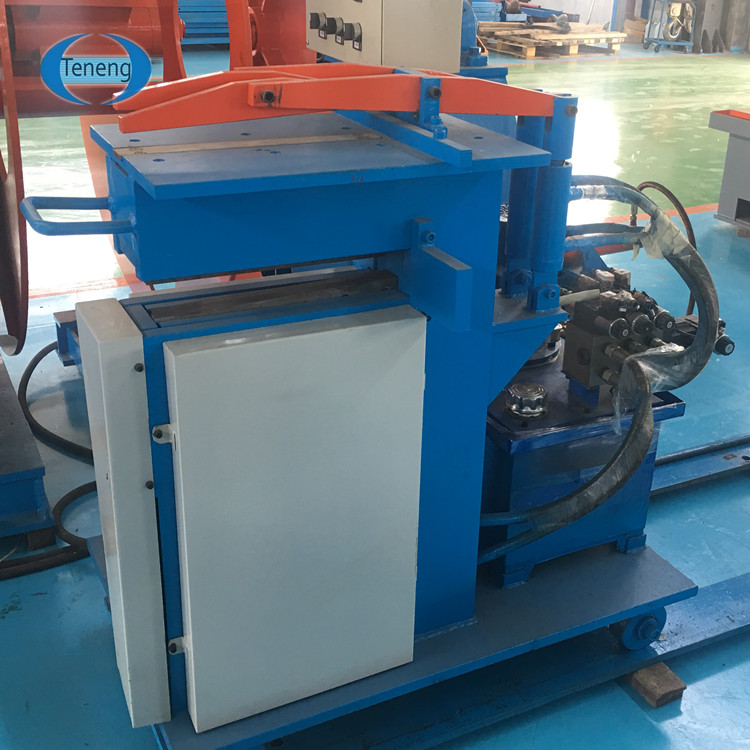

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
| Steel Pipe Specification | |
| Round Pipe diameter | Ø25–Ø76mm |
| Pipe Thickness | 1.2– 4.0mm |
| Square and rectangle pipe | 20X20mm –60X60mm |
| Pipe Thickness | 1.2 – 3.0mm |
| Pipe Length | 6-9m |
| Length Tolerance | 0-6mm |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ470-Φ510mm |
| Outer diameter | Φmax=1900mm |
| Strip steel width | 80mm-240mm |
| Strip steel thickness | 1.2mm-4.0mm |
| The maximum weight | 3.0 tons |
| Electric installed capacity | appro.450KW |
| Line Speed | 1.5m3/h |
