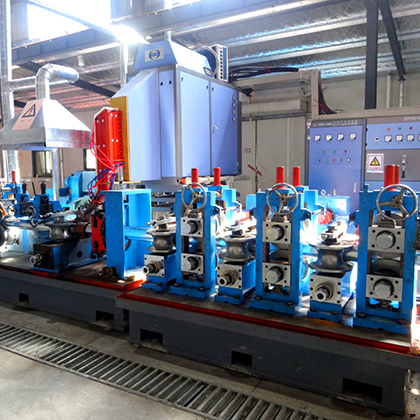

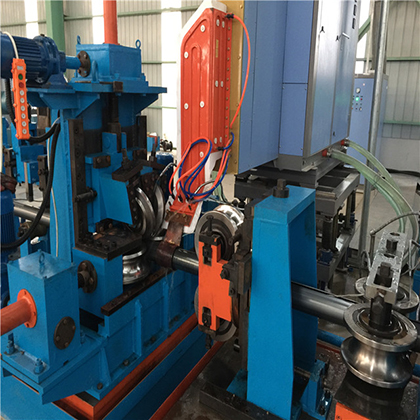

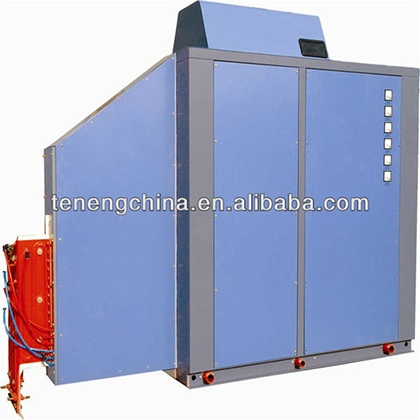

Solid State HF Welder For Welded Pipe Processing
Good quality solid state welder
We have supplied more than 2,300 sets of GGP-series tube welder to the users in China and also the abroad. The highest power can reach to 1800kW and 800kHz for highest frequency which is the in China.
Main design index for solid state high frequency tube welder:
| Output Power | DC Power | Welder Model | Rated Voltage | Rated Current | Frequency Range | Electricity Efficiency | Working Duty |
| 60kW | 80kW | GGP60-0.5-HC | 450V | 180A | 450~500kHz | ≥85% | Continuous |
| 100kW | 120kW | GGP100-0.45-HC | 450V | 270A | 400~450kHz | ≥85% | Continuous |
| 150kW | 180kW | GGP150-0.4-HC | 450V | 400A | 350~400kHz | ≥85% | Continuous |
| 200kW | 240kW | GGP200-0.35-HC | 450V | 530A | 300~350kHz | ≥85% | Continuous |
| 250kW | 300kW | GGP250-0.35-HC | 450V | 670A | 300~350kHz | ≥85% | Continuous |
| 300kW | 360kW | GGP300-0.35-HC | 450V | 800A | 300~350kHz | ≥85% | Continuous |
| 400kW | 480kW | GGP400-0.3-HC | 450V | 1070A | 200~300kHz | ≥85% | Continuous |
| 500kW | 600kW | GGP500-0.3-HC | 450V | 1330A | 200~300kHz | ≥85% | Continuous |
| 600kW | 720kW | GGP600-0.3-HC | 450V | 1600A | 200~300kHz | ≥85% | Continuous |
| 700kW | 840kW | GGP700-0.25-HC | 450V | 1870A | 150~250kHz | ≥85% | Continuous |
| 800kW | 960kW | GGP800-0.25-HC | 450V | 2130A | 150~250kHz | ≥85% | Continuous |
| 1000kW | 1200kW | GGP1000-0.25-HC | 450V | 2670A | 150~250kHz | ≥85% | Continuous |
| 1200kW | 1440kW | GGP1200-0.25-HC | 450V | 3200A | 150~250kHz | ≥85% |
