HG168 ERW High Frequency Welded Steel Tube and Pipe Cold Forming Machine Production Line

The mill is intended for manufacturing round pipe of Φ60mm-Φ165mm with thickness of 2.0mm–6.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round, square or rectangular pipe.

The technical flow of the production line:

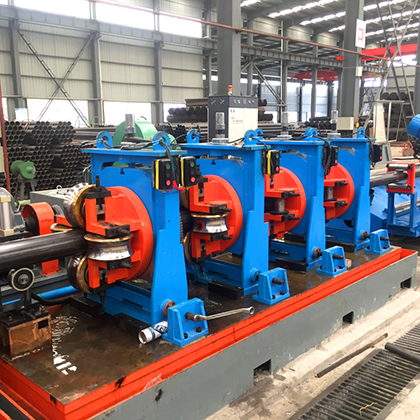

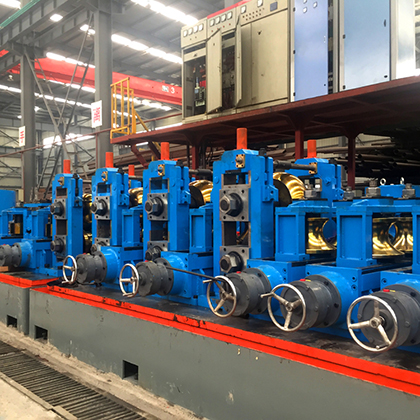

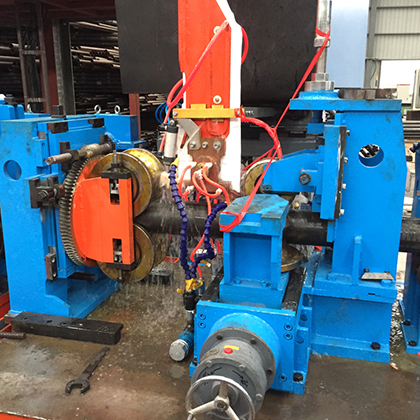

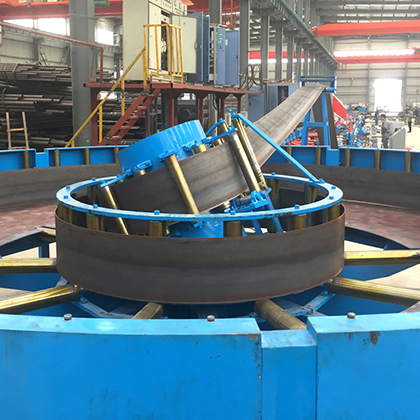

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Formingsection(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Coldsaw under computer-control →→ Run-out table→→Semi-autoPackingmachine
