HGF200 high-frequency welded pipe production line isthe special equipment providing longitudinally welded pipeand cold formed steel forindustriessuch as metallurgy, construction, transportation, machinery, vehicles andso on.
Used new technology to produce square and rectangle pipe directly.
Taking cold or hot-rolled steel as raw materials,throughcold-formed and high-frequency welding method to produce the suitable pipe.
Material of the coil: Low carbon steel, max. Q355.

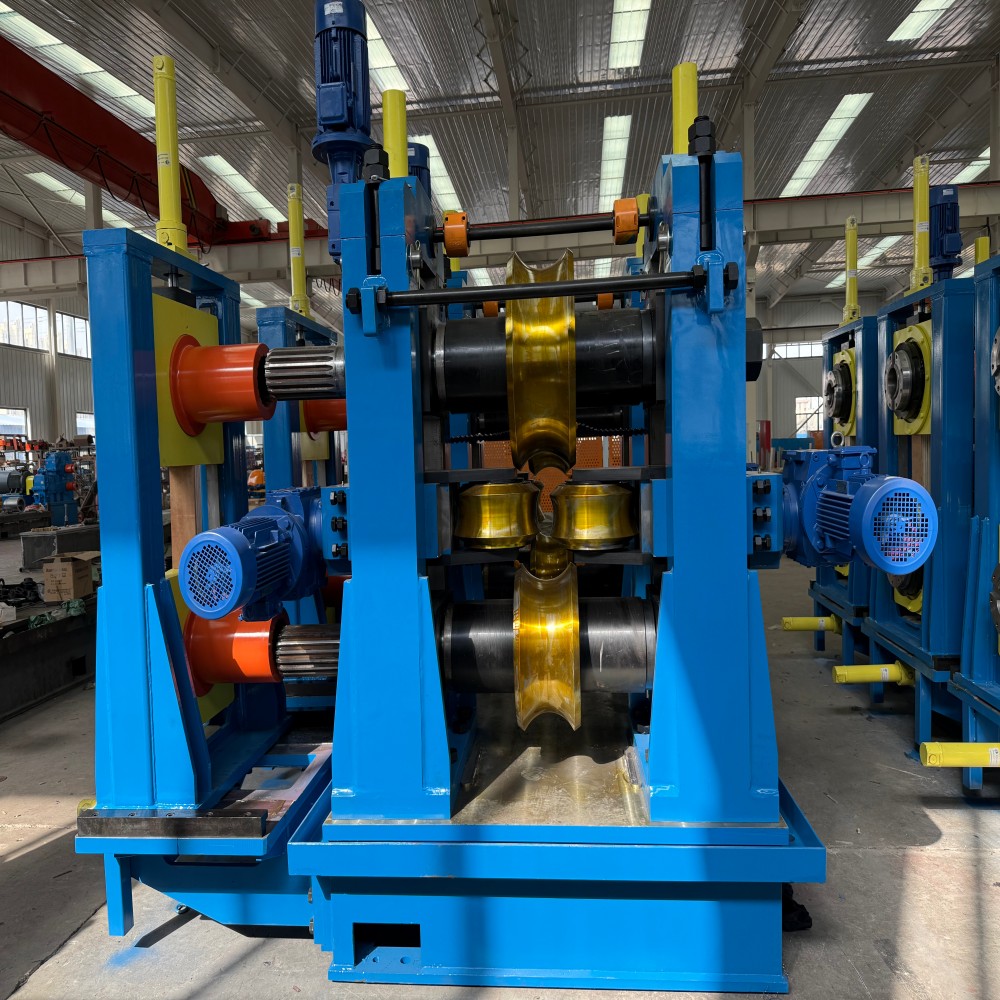

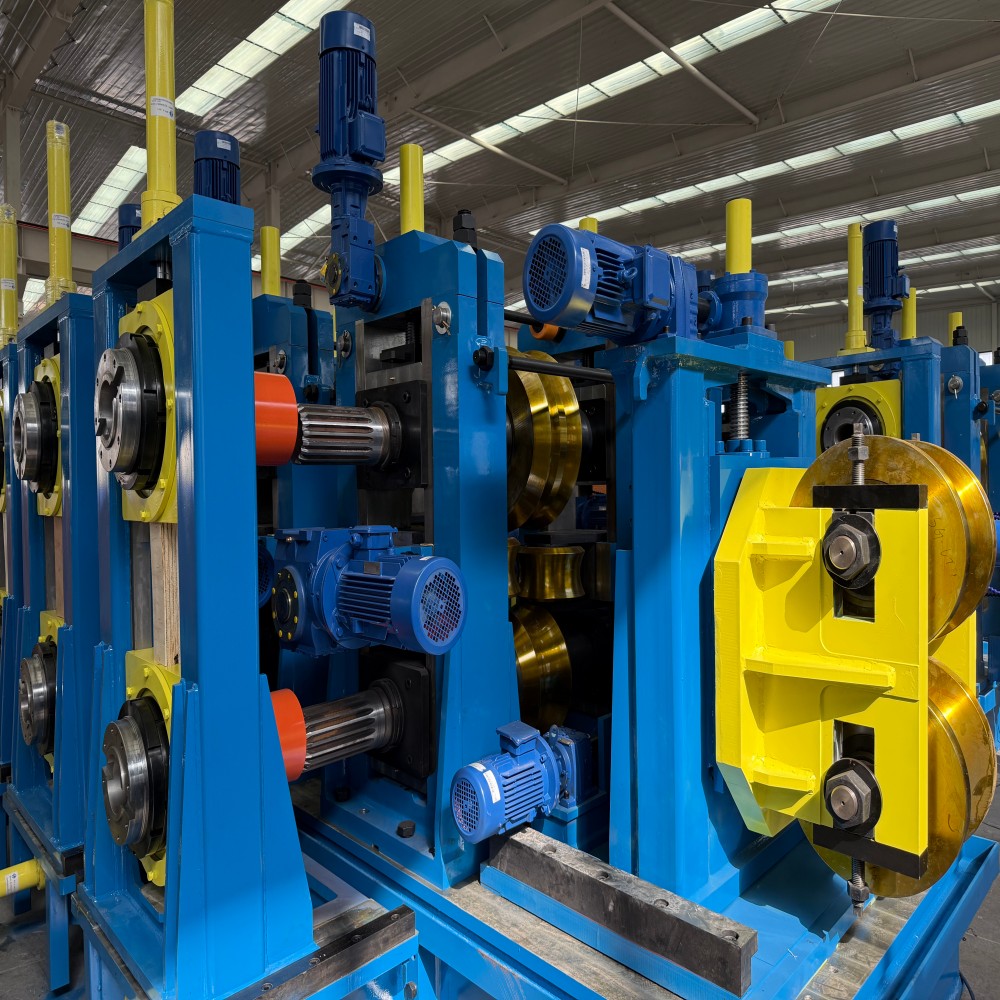

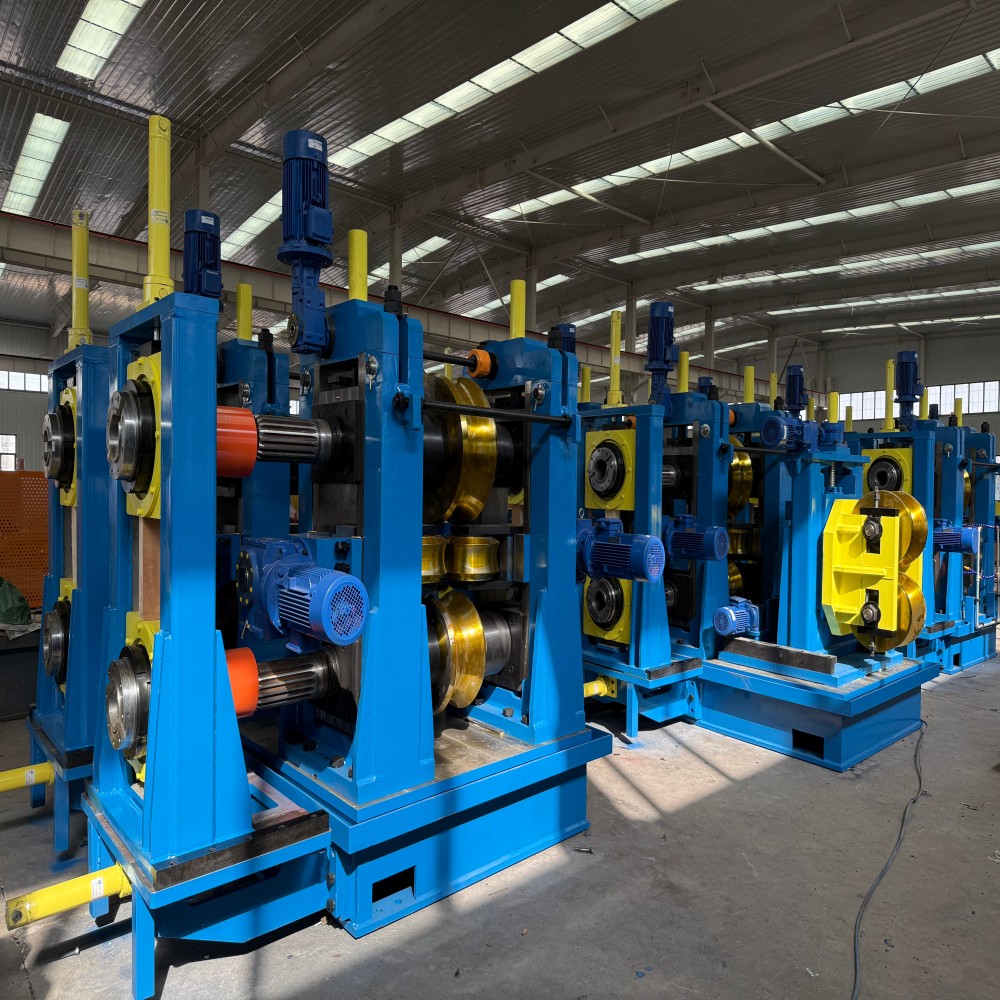

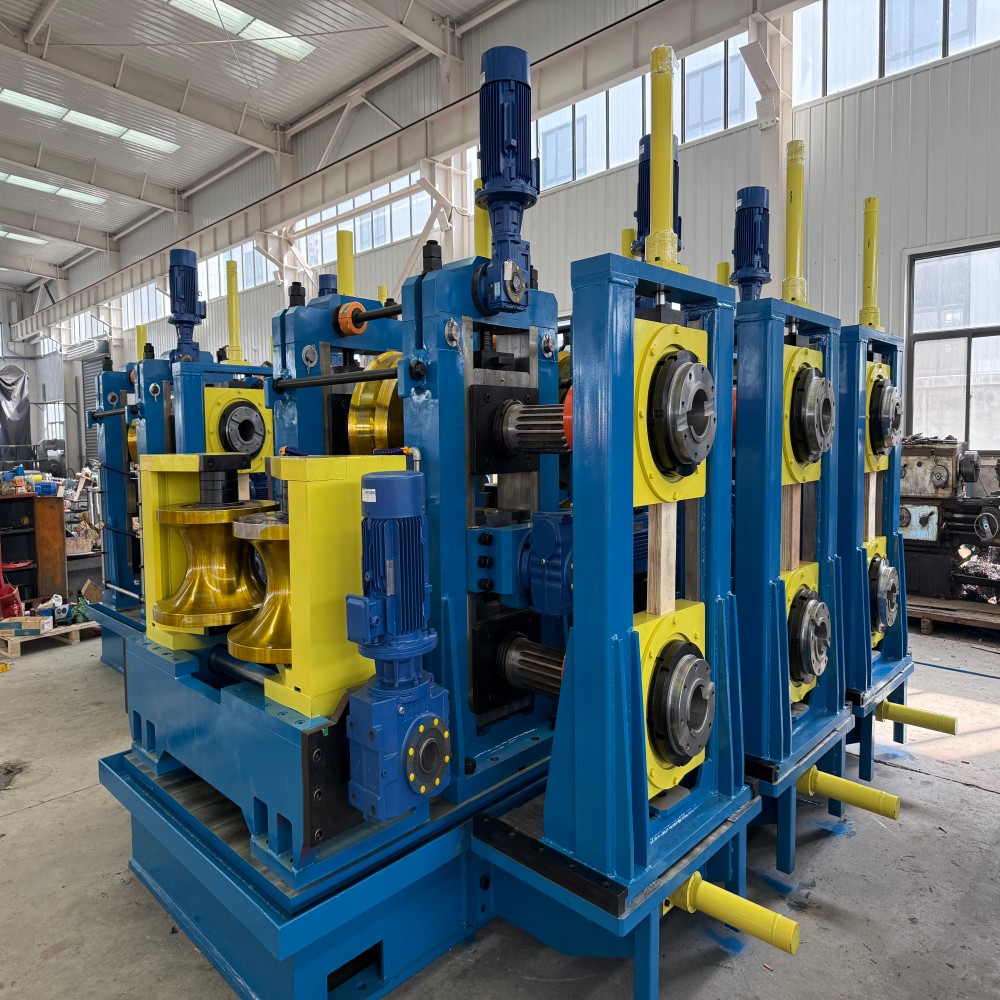

Coil car→ Uncoiler→ Coil Peeler & head straightener →Fiveroll Flattening→ shear and end welder→ Spiral accumulator→ Forming→High-frequency induction welding→ Removing Externalburr→ Polishing Roller→ Water Cooling→ Sizing→ MillingSaw→ Full Auto Packing machine
| Steel Pipe Specification | |
| Round Pipe diameter | Φ89mm-Φ273mm |
| Pipe Thickness | 4.0– 12.0mm |
| Square and rectangle pipe | 70×70-200X200mm |
| Pipe Thickness | 4.0 – 12.0mm |
| Pipe Length | 6.0m – 12.0m |
| Length Tolerance | 0-6mm |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ600-800mm |
| Outer diameter | Φmax=1800mm |
| Strip steel width | 280mm-860mm |
| Strip steel thickness | 4.0mm-12.0mm |
| The maximum weight | 15.0 tons |
| Electric installed capacity | appro. 1800KW |
| Size of the whole line | appro. 130X16m |
| Line Speed | 10-40m/min |
